WG45 (for film)

  • 1. The machine has automatic shutdown function, low power warning functions, full data storage hint functions;
    2. Data browsing and viewing function;
    3. Single angle can store 10000 testing records;
    4. Humanized design, good man-machine communication interface.

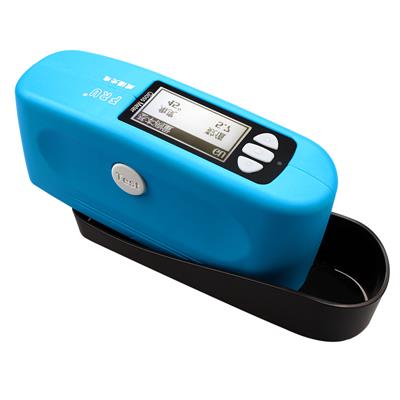

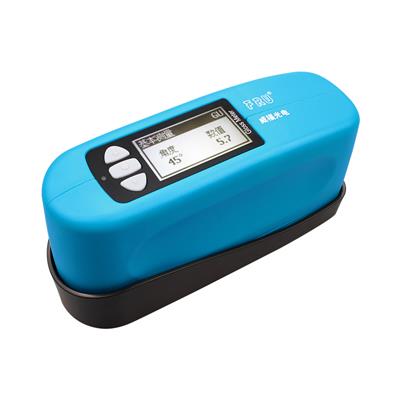

    Product description: WG45 gloss meter is specially designed to measure film industry, which professional customers should know 45 degree is only for film according to international standard.
  • 留言咨询

WG45 gloss meter is produced according to the national verification regulation of JJG696 standard, adopt long life light source, good repeatability, small volume, high precision and good stability. It is mainly used on film material.



Gloss Meter WG45 function description

(1) One button to complete measurement: one operation can complete measurement; Measuring light incident angle meet ISO 2813 three measuring light incident angle.

(2) Manually entering standard samples gloss data;

(3) Humanized design, good man-machine communication interface;

(4) Single angle can store 10000 testing records, storage structure is: 100 prototypes, each prototype with 100 testing data;

(6) Data browsing and viewing function;

(7) The machine has automatic shutdown function, low power warning functions, full data storage hint functions;



Attachment Description

(1) Power adapter: standard + 5V, 2A external power supply;

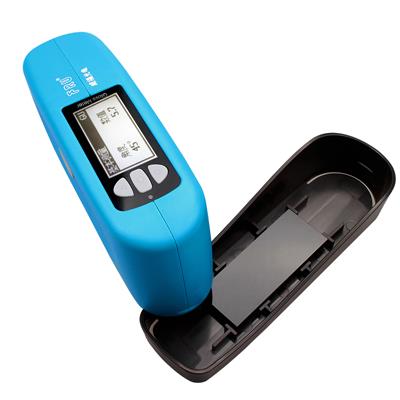

(2) Standard board: provide calibration criterion.



WG45 specification



Specification Unit Single Gloss Meter
Measuring Angle degree 45°
Measuring Range GU 45°: 0-1000
Measuring Spot mm 45°: 9x15
Division Value GU 0-1000: 0.1
Repeatability GU 0-100:0.2 >100:0.2%
Indication Error GU ±1.5
Zero Error GU 0.2
Working Temperature 10℃ - 40℃
Storage Temperature -10℃ - 70℃
Humidity Range   Relative humidity less than 85%, without condensation
Power Adapter   Section 2 5 alkaline batteries/power adapter
Volume mm 159x49x72
Weight g 500
