WT series

  • 1. Digital display, wide measurement range, high resolution.
    2.Solid structure, small volume, light weight, exquisite, easy to carry.
    3.Single / Continuous measuring mode.
    4.Provide Bluetooth data output choice.
    Product description: It can be applied to measure the transmittance or haze of all kinds of transparent, translucent samples with parallel plane. Also can be used to determine the turbidity or clarity of liquid sample.
  • 留言咨询

Main Features

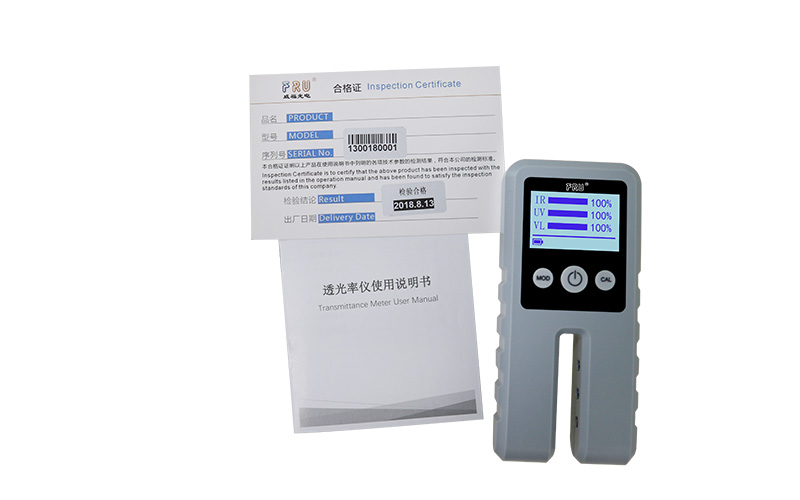

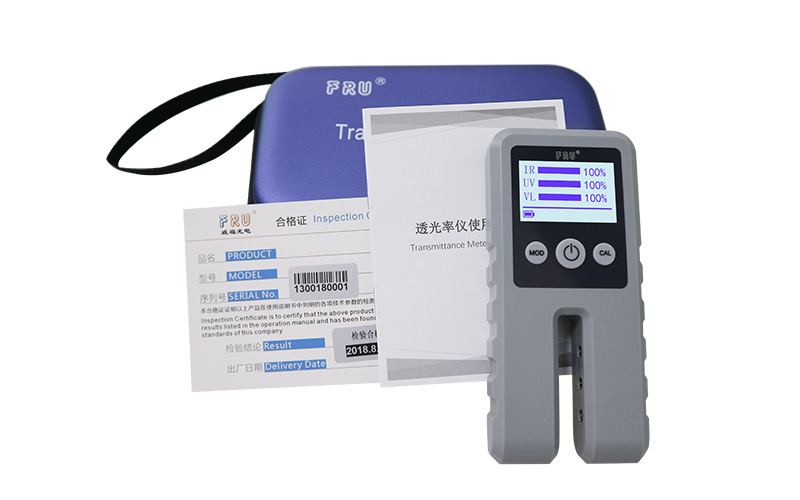

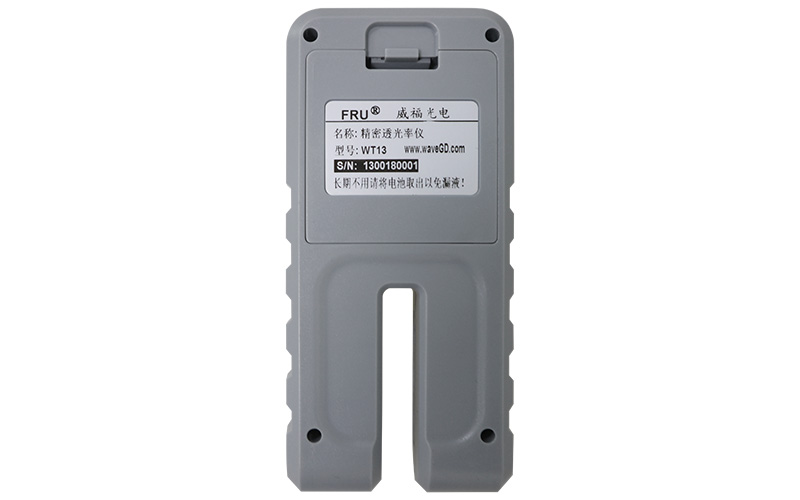

* This Window Tint Meter is a hand held device that measures the amount of light that passes through a window.

* Technology is designed in accordance with GB 2410-80, ASTM D1033-61, JIS k7105-81 and other standards.

* Digital display, wide measurement range, high resolution.

* Solid structure, small volume, light weight, exquisite, easy to carry.

* Single / Continuous measuring mode.

* Use USB/RS-232 data output to connect with PC.

* Provide Bluetooth data output choice.





Specifications



Model

Parameters

WT11

WT13

Measurement range

0~100%

●

●

Size

135.5mmx62.5mmx22.5mm

●

●

Wight

93g(Battery excluded)

●

●

Resolution

0.1%

●

●

Accuracy

±2%

●

●

Power supply

4x1.5V AAA (UM-4)

●

●

Working flow

＜30mA

●

●

Sample thickness

＜9mm

●

●

Operating Conditions

Temp：0~50℃，

Humidity：<90%

●

●

Test model

Visible light

●

●

UV

○

●

IR

○

●

Visible light,UV,IR

○

●

Spectrum range

Visible light：

380~760nm

●

●

IR：940nm

○

●

UV：365nm

○

●
